在华为云 CCE（云容器引擎）上部署 TapData

TapData Enterprise 可部署在您的本地数据中心，适合对数据敏感性或网络隔离有严格要求的场景，可服务于构建实时数仓，实现实时数据交换，数据迁移等场景。

云容器引擎（Cloud Container Engine，简称CCE）提供高度可扩展的、高性能的企业级Kubernetes集群。借助云容器引擎，您可以在华为云的 CCE 集群中轻松部署和管理 TapData 服务。

准备工作

开通 CCE 服务并购买集群

操作步骤

1. 上传 TapData 镜像至华为云镜像仓库。

   1. 在本地安装 docker 服务（18.06 及以上版本），用于执行认证和上传操作。

   2. 通过命令将 TapData 镜像推送到镜像仓库。

2. 获取 kubectl 配置文件，用于对接认证集群。

   1. 在华为云 CCE 服务控制台，找到您的集群并单击 kubcetl 后的配置按钮，查看 kubctl 的连接信息。

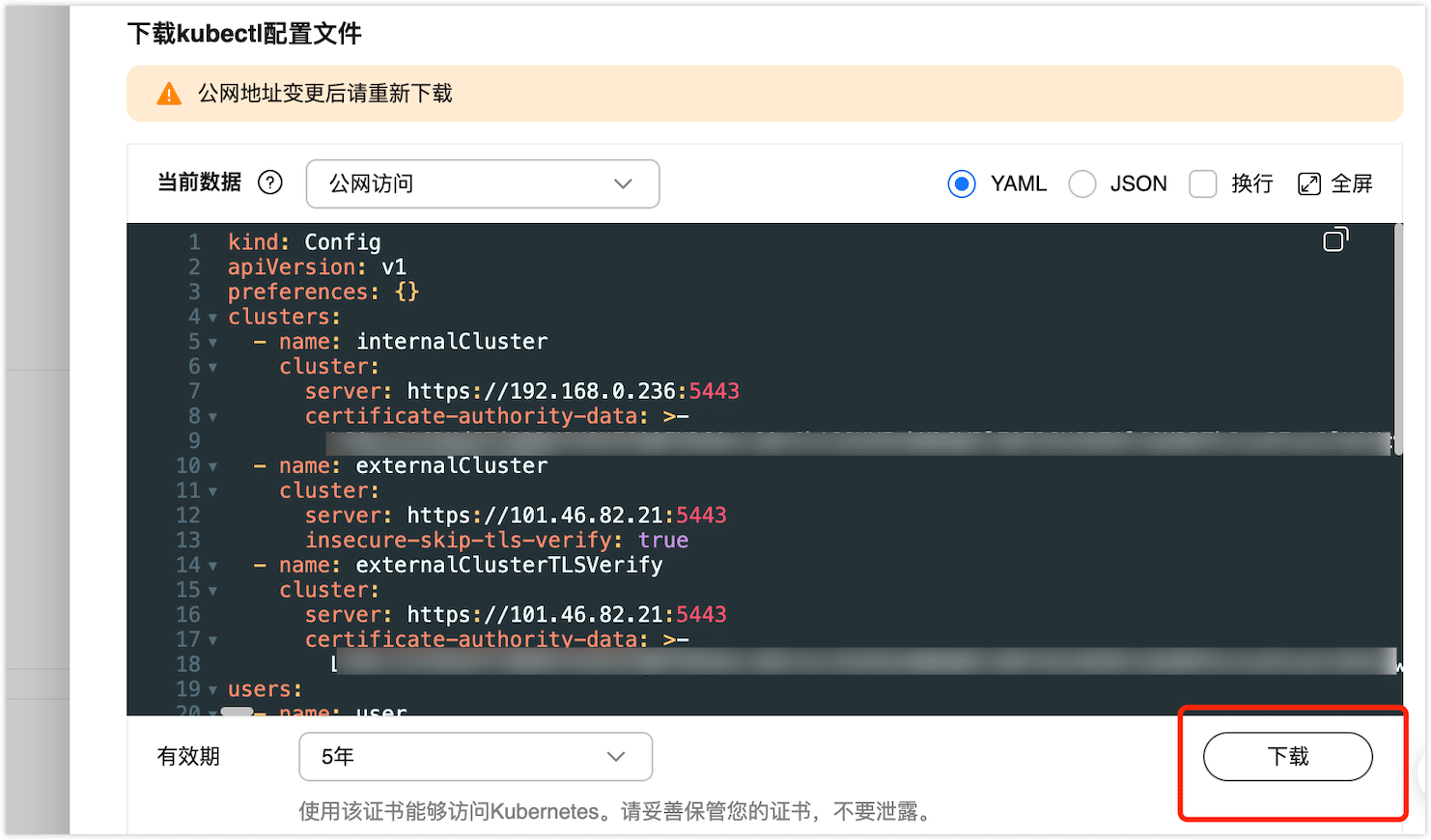

   2. 在弹出的页面中，选择内网访问或公网访问，并下载对应的配置文件。 本案例中，我们以公网访问为例演示配置流程，更多介绍，见连接集群。

3. 通过 kubectl 连接至 CCE 集群，下文以本地的 Linux 平台为例，演示操作流程

   1. 安装 kubcetl 工具，您也可以通执行 kubectl version 命令判断是否已安装。

   2. 将刚刚下载的 kubectl 配置文件（kubeconfig.yaml），上传至本地 Linux 平台设备上。

   3. 执行下述命令，将 kubeconfig.yaml 配置文件移动到默认路径“$HOME/.kube/config”中。

      cd /home
      mkdir -p $HOME/.kube
      mv -f kubeconfig.yaml $HOME/.kube/config # 请将kubeconfig.yaml修改为对应的文件名称


   4. 据使用场景，切换 kubectl 的访问模式。

      • VPC 内网接入访问时，执行：kubectl config use-context internal
      • 公网接入访问且无需域名双休认证时，执行：kubectl config use-context external
      • 公网接入访问且需域名双向认证时时，执行：kubectl config use-context externalTLSVerify

   5. 在客户端中执行以下命令，检查客户端能否通过 kubectl 连接集群。

      kubectl cluster-info    # 查看集群信息

4. 创建 SWR 镜像拉取密钥。

   # 创建镜像拉取密钥，注意替换命令中认证信息
   kubectl create secret docker-registry my-registry-key \
       --docker-server=your-registry.com \
       --docker-username=your-username \
       --docker-password=your-password \
       --docker-email=your-email

   # 在 Deployment 中引用
   kubectl patch deployment tapdata-app -p '{"spec":{"template":{"spec":{"imagePullSecrets":[{"name":"my-registry-key"}]}}}}'

5. 通过 YAML 文件部署 TapData 服务。

   # 安装 Mongodb 服务，作为 TapData 的元数据存储
   sudo kubectl apply -f rcbc-deploy-mongo.yaml

   # 安装 TapData 服务
   sudo kubectl apply -f rcbc-deploy-tapdata.yaml

6. 验证 TapData 服务部署。

   # 检查 Mongodb 服务是否运行正常
   sudo kubectl get pod -n tapdata | grep mongo

   # 检查 TapData 服务是否运行正常
   sudo kubectl get pod -n tapdata | grep tapdata-app

附录

rcbc-deploy-mongo.yaml 配置样例

kind: ConfigMap
apiVersion: v1
metadata:
  name: mongodb-config
  namespace: tapdata
  labels:
    app: mongodb-config
data:
  mongo_keyfile: |
    tuhIKOurCzkh4w0xUiRHhVteUZm9w3/ELaUgULajCcXit/cSHClmoWzjNbsp47Ms
    wIIAYXzMY2O80qVD75zQyhb2KKsASvr35evaUKCNf1LJVr19sn0dcf5LyyPNJPTH
    4Hj9jIKMHNOXKOBhB/zQcgbqnMx7rseIwMfOPGF9bZ4/lzJ7y6grf6L62IfgnkLL
    gxuP3qANIj/abQPBPQXx/oYV6exfRnLyu/RH26vgjqzxPYu1EjQDaVf38zEvwM6M
    5VEEGNgahHZquTmOA3j8dbqbbVb819eaNof/Nt1iyN7OyyI5BQE8vpWNAsm5bTUV
    X8+5zNoOwWkEOi7m9TyuyAw/5FapZ+1jlLWha83wKrqXzPZW9Gh7FWPyxSL1cUv/
    KPNjgHHujuZnpLrGPDKr2okThhgV7CiuNm4vNUkXi363BhNKbI8EP4f+qZswYJoi
    nQFFSv98K8wr5UKGMGB2Y37MxcGhBKXVrvz0GECPfCDOqgco4aAFa/IFJh9y8jni
    P0FmNZyCvZzQZ09o67uFND7cJMRszLlu1gSy0MDXgpUyb/eBr3A5i79eXVrBXKMl
    PC6GEs4EpJOui9SgYQsIcKME189aznz3qu5L18XUgh1w6Vl67t6grlUiVYY2nCzV
    ihIktKa5CVkuNTrlHDbYogFfDS/Owc5t3uvgsx3MdilsnzJzukZ5t0XeXNu4KmpY
    mAEL2nS6lOibG3wvUhBCjihPx/iuQCu6NSj9GiVsjBzEbZbwPjPoIi0zb+NPm0TQ
    N6piy4ZS+KixbyTZdOO1pDQ9/RzdzwQAGkIbEi4sYqDyLEWMb1jKnYy/3LtnYVAY
    EER+AmiCaX9Mcy/D4Bbef95KhEhCHCOj51IVimPb7K8XbbFQtWo2blwICtjkSVHa
    hw+JjSHObOycjy62wFB5jkYMv/eEomyOErsAYi3ae7VHcOkFdCuJpE211ttVElmZ
    17ZggibzRHXIsehcLZpFTGLGZubGm+AFtswHfYtFeYtw4Hin

  startup.sh: |
    #!/bin/bash
    if [ ! -e "/data/WiredTiger" ] && [ ! -e "/data/journal" ] && [ ! -e "/data/local.0" ] && [ ! -e "/data/storage.bson" ]; then
        mongod --replSet rs0 --dbpath /data --logpath /logs --pidfilepath /data/mongod.pid --fork
        mongosh admin --eval "rs.initiate({ _id: 'rs0', members: [ {_id: 0, host: 'localhost:27017' } ] })" --quiet
        mongosh admin --eval "db.getSiblingDB('admin').createUser({ 'user' : 'root', 'pwd' : 'AFtswHfYtFeYtw4Hin' , 'roles' : [ { 'role' : 'root', 'db' : 'admin' } ] })" --quiet
        mongod --replSet rs0 --dbpath /data --logpath /logs --pidfilepath /data/mongod.pid --shutdown

        echo
        echo 'MongoDB init process complete; ready for start up.'
        echo
    fi
    echo "Startup mongodb"
    exec mongod --config /etc/mongod.conf

  mongod.conf: |
    storage:
      dbPath: /data
      journal:
        commitIntervalMs: 100

    systemLog:
      logAppend: true
      path: /var/log/mongodb/mongod.log
      logRotate: rename
      destination: file
      timeStampFormat: iso8601-utc

    # network interfaces
    net:
      port: 27017
      bindIp: 0.0.0.0

    #replication:
    replication:
      replSetName: rs0

    security:
      authorization: enabled
      keyFile: /data/mongo_keyfile

---

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mongodb-pvc
  namespace: tapdata
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: ssd
  resources:
    requests:
      storage: 50Gi

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: mongodb
    version: "7.0"
  name: mongodb
  namespace: tapdata
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mongodb
  strategy: {}
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - image: swr.ap-southeast-5.myhuaweicloud.com/swr-poc/tapdata_poc_mongodb:7.0.6
          name: mongodb
          resources:
            limits:
              cpu: "4"
              memory: "8Gi"
            requests:
              cpu: "2"
              memory: "4Gi"
          ports:
            - containerPort: 27017
              name: node
              protocol: TCP
          livenessProbe:
            tcpSocket:
              port: node
            initialDelaySeconds: 20
            periodSeconds: 20
          readinessProbe:
            tcpSocket:
              port: node
            initialDelaySeconds: 10
            periodSeconds: 10
          volumeMounts:
            - name: mongodb-config
              mountPath: /startup.sh
              subPath: startup.sh
            - name: mongodb-config
              mountPath: /data/mongo_keyfile
              subPath: mongo_keyfile
            - name: mongodb-config
              mountPath: /etc/mongod.conf
              subPath: mongod.conf
            - name: persistent-storage
              mountPath: /data

          command: ["/startup.sh"]

      volumes:
        - name: persistent-storage
          persistentVolumeClaim:
            claimName: mongodb-pvc
        - name: mongodb-config
          configMap:
            name: mongodb-config
            items:
              - key: startup.sh
                path: startup.sh
                mode: 0755
              - key: mongo_keyfile
                path: mongo_keyfile
                mode: 0400
              - key: mongod.conf
                path: mongod.conf

---
apiVersion: v1
kind: Service
metadata:
  name: mdb-svc
  labels:
    app: mdb-svc
  namespace: tapdata
spec:
  type: NodePort
  ports:
    - port: 27017
      protocol: TCP
      targetPort: 27017
      nodePort: 32000
  selector:
    app: mongodb

rcbc-deploy-tapdata.yaml 配置样例

配置说明

在部署前，请注意以下重要配置项：

• 安全配置：所有敏感信息（密码、访问码等）都应存储在 Secret 中，避免明文配置
• 资源限制：根据实际负载调整 CPU 和内存限制
• UUID 生成：每个部署实例应使用唯一的 UUID

部署前请先创建 Secret，然后再应用 ConfigMap 和 Deployment。

# Secret 配置 - 用于存储敏感信息
apiVersion: v1
kind: Secret
metadata:
  name: tapdata-secret
  namespace: tapdata
type: Opaque
data:
  # 注意：以下值需要进行 base64 编码
  # echo -n "your_mongodb_password" | base64
  mongodb-password: eW91cl9tb25nb2RiX3Bhc3N3b3Jk  # your_mongodb_password
  # echo -n "your_access_code" | base64
  tapdata-access-code: eW91cl9hY2Nlc3NfY29kZQ==  # your_access_code
  # echo -n "$(uuidgen)" | base64
  tapdata-uuid: NTY4Yzc2NWItOWJjMC00OTUwLWJhMjQtNDZmZDQ4ODg0OTgw  # 568c765b-9bc0-4950-ba24-46fd48884980

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: tapdata-config
  namespace: tapdata
  labels:
    app: tapdata-config
data:
  agent.yml: |
    {agentId: 06eefee4-8154-44a1-afc6-a5bd68d0c8c8}
  license.txt: |
    paste your_license_text here

  application.yml: |
    spring:
      data:
        mongodb:
          uri: ""
          ssl: 'false'
          sslCA: ""
          sslCertKey: ""
          conn_params: ""
          username: root
          # 密码通过 Secret 挂载
          password: ${MONGODB_PASSWORD}
          mongoConnectionString: 'mongodb://mdb-svc.tapdata.svc.cluster.local:32000/tapdata?authSource=admin'
          sslPEMKeyFilePassword:
          authenticationDatabase: admin
    tapdata:
      cloud:
        # 访问码通过 Secret 配置
        accessCode: ${TAPDATA_ACCESS_CODE}
        retryTime: 3
        baseURLs: 'http://127.0.0.1:3030/api/'
      mode: cluster
      conf:
        tapdataPort: '3030'
        backendUrl: 'http://127.0.0.1:3030/api/'
        apiServerPort: '3080'
        tapdataJavaOpts: '-Xmx12G -Xms4G'
        SCRIPT_DIR: etc
        reportInterval: 5000
        apiWorkerCount: 3
        # UUID 在部署时生成
        uuid: ${TAPDATA_UUID}
        Decimal128ToNumber: 'false'
        tapdataTMJavaOpts: '-Xmx8G -Xms4G'

  docker-entrypoint.sh: |
    #!/bin/bash

    # logging functions
    daas_log() {
        local type="$1"
        shift
        printf '%s [%s] [Entrypoint]: %s\n' "$(date --rfc-3339=seconds)" "$type" "$*"
    }

    daas_note() {
        daas_log INFO "$@"
    }

    daas_warn() {
        daas_log Warn "$@" >&2
    }

    daas_error() {
        daas_log ERROR "$@" >&2
        exit 1
    }

    if [[ -z $TAPDATA_WORK_DIR ]]; then
        TAPDATA_WORK_DIR=/tapdata/apps
    fi

    # 检查是否是其它脚本引用
    _is_sourced() {
        # https://unix.stackexchange.com/a/215279
        [ "${#FUNCNAME[@]}" -ge 2 ] \
            && [ "${FUNCNAME[0]}" = '_is_sourced' ] \
            && [ "${FUNCNAME[1]}" = 'source' ]
    }

    # usage: file_env VAR [DEFAULT]
    file_env() {
        local var="$1"
        local fileVar="${var}_FILE"
        local def="${2:-}"
        if [ "${!var:-}" ] && [ "${!fileVar:-}" ]; then
            daas_error "Both $var and $fileVar are set (but are exclusive)"
        fi
        local val="$def"
        if [ "${!var:-}" ]; then
            val="${!var}"
        elif [ "${!fileVar:-}" ]; then
            val="$(< "${!fileVar}")"
        fi
        export "$var"="$val"
        unset "$fileVar"
    }

    docker_setup_env() {
        file_env 'MONGODB_USER'
        file_env 'MONGODB_PASSWORD'
        file_env 'MONGODB_CONNECTION_STRING'
        file_env 'BACKENDURL'
        file_env 'MODULE'
    }

    docker_tapdata_start() {
        daas_note "Waiting for tapdata startup"
        if [ -z "$MODULE" ]; then
            rm -rf ~/.local/*
            chmod +x /tapdata/apps/tapdata
            /tapdata/apps/tapdata status --workDir $TAPDATA_WORK_DIR
            /tapdata/apps/tapdata stop -f
            /tapdata/apps/tapdata start
        else
            rm -rf ~/.local/*
            /tapdata/apps/tapdata start $MODULE --workDir $TAPDATA_WORK_DIR
        fi
    }

    logrotate() {
        # 删除修改时间3天以前的日志
        cd /root/
        find ./ -maxdepth 1 -mtime +3 | grep 2023.* | xargs -I {} rm -rf {}
        # 将当前的current格式化归档
        mv $TAPDATA_WORK_DIR/ ~/$(date "+%Y-%m-%d-%H:%M:%S")
    }

    set_license() {
        echo "get license..."
        if [[ -z $LICENSE_HOST ]]; then
          LICENSE_HOST=58.251.34.123:18080
        fi
        echo "login..."
        curl -v -XPOST -H "Content-Type:application/json" http://$LICENSE_HOST/ldap/login -d '{"password": "Gotapd8!", "uid": "license-temp"}'
        if [[ $? -ne 0 ]]; then
            echo "login failed"
            exit 1
        fi
        echo "Get SID..."
        SID=$(java -cp /tapdata/apps/components/tm.jar -Dloader.main=com.tapdata.tm.license.util.SidGenerator org.springframework.boot.loader.launch.PropertiesLauncher | grep "SID:" | cut -d ' ' -f 2-)
        echo "SID: $SID"
        resp_json=$(curl -sb -XPOST -H "Content-Type:application/json" -H "uid:license-temp" http://$LICENSE_HOST/license -d '{"customer": "test", "reason": "本地测试", "sid": "'$SID'", "valid_days": 30, "version": "4.7", "licenseType": "OP", "engineLimit": 1}')
        apt install -y jq
        path=$TAPDATA_WORK_DIR
        # logrotate
        mkdir -p $path
        mkdir -p ~/.tapdata
        echo $resp_json | jq -r .data.content > $path/license.txt
        echo $resp_json | jq -r .data.content > ~/.tapdata/license.txt
        if [[ -f $path/license.txt && -f ~/.tapdata/license.txt ]]; then
            ls -al $path/license.txt
            ls -al ~/.tapdata/license.txt
            echo "set license file success."
        else
            echo "set license file failed."
        fi
    }

    docker_setup_tapdata() {
        # 创建一个临时文件来进行修改
        TMP_CONFIG=$(mktemp)
        cp /tapdata/apps/application.yml $TMP_CONFIG

        if [ -n "$MONGODB_USER" ]; then
            sed -ri "s#username:.*#username: $MONGODB_USER#" $TMP_CONFIG
        fi

        if [ -z "$MONGODB_CONNECTION_STRING" ]; then
            daas_error "MONGODB_CONNECTION_STRING not set.\n Did you forget to add -e MONGODB_CONNECTION_STRING=... ?"
        else
            sed -ri "s#(mongoConnectionString:.*').*(')#\1$MONGODB_CONNECTION_STRING\2#" $TMP_CONFIG
        fi

        if [ -n "$BACKENDURL" ]; then
            sed -ri "s#(backendUrl:.*').*(')#\1$BACKENDURL\2#" $TMP_CONFIG
        fi

        # 将修改后的配置复制到工作目录
        mkdir -p $TAPDATA_WORK_DIR
        cp $TMP_CONFIG $TAPDATA_WORK_DIR/application.yml
        rm -f $TMP_CONFIG

        if [ -n "$MONGODB_PASSWORD" ]; then
            /tapdata/apps/tapdata status --workDir $TAPDATA_WORK_DIR
            /tapdata/apps/tapdata resetpassword $MONGODB_PASSWORD
        fi
    }

    unzip_files() {
        tar xzvf /tapdata/apps/connectors/dist.tar.gz -C /tapdata/apps/
        cd /tapdata/apps/connectors/ && tar xzvf dist.tar.gz
        tar xzvf /tapdata/apps/components/apiserver.tar.gz -C /tapdata/apps/
    }

    setup_java() {
        if [[ -z "$JAVA_VERSION" || $JAVA_VERSION == "java8" ]]; then
            daas_log INFO "Setting up java version: java17"
            update-alternatives --set java /usr/java/jdk-17.0.12/bin/java
            update-alternatives --set javac /usr/java/jdk-17.0.12/bin/javac
            update-alternatives --set jar /usr/java/jdk-17.0.12/bin/jar
            echo 'export PATH="/usr/java/jdk-17.0.12/bin:$PATH"' >> /etc/profile && . /etc/profile
        elif [[ $JAVA_VERSION == "java11" ]]; then
            daas_log INFO "Setting up java version: java11"
            update-alternatives --set java /usr/java/jdk-11.0.25/bin/java
            update-alternatives --set javac /usr/java/jdk-11.0.25/bin/javac
            update-alternatives --set jar /usr/java/jdk-11.0.25/bin/jar
            echo 'export PATH="/usr/java/jdk-11.0.25/bin:$PATH"' >> /etc/profile && . /etc/profile
        elif [[ $JAVA_VERSION == "java17" ]]; then
            daas_log INFO "Setting up java version: java17"
            update-alternatives --set java /usr/java/jdk-17.0.12/bin/java
            update-alternatives --set javac /usr/java/jdk-17.0.12/bin/javac
            update-alternatives --set jar /usr/java/jdk-17.0.12/bin/jar
            echo 'export PATH="/usr/java/jdk-17.0.12/bin:$PATH"' >> /etc/profile && . /etc/profile
        else
            daas_error "Unsupported JAVA_VERSION: $JAVA_VERSION"
        fi
    }

    _main() {
        setup_java

        cp /tmp/conf/application.yml /tapdata/apps/application.yml
        echo "export JAVA_TOOL_OPTIONS=-Dfile.encoding=UTF8" >> /etc/profile && . /etc/profile
        unzip_files
        # set_license

        daas_note "Entrypoint script for tapmanager Server started."

        # Load various environment variables
        docker_setup_env "$@"

        db=$(echo $MONGODB_CONNECTION_STRING | awk -F '/' '{print $2}' | awk -F '?' '{print $1}')
        TAPDATA_MONGO_URI="mongodb://root:$MONGODB_PASSWORD@$MONGODB_CONNECTION_STRING"
        echo "restore data to db: $db, to uri: ${TAPDATA_MONGO_URI}"

        docker_setup_tapdata
        if [[ $TAPDATA_WORK_DIR != "" && -d /tapdata/apps/components/webroot/ ]]; then
            mkdir -p $TAPDATA_WORK_DIR/components/webroot/
            cp -r /tapdata/apps/components/webroot/* $TAPDATA_WORK_DIR/components/webroot/
        fi

        daas_note "Starting tapdata server"
        docker_tapdata_start
        daas_note "tapdata server started."

        exec "$@"
    }

    # 如果是其它脚本引用，则不执行操作
    if ! _is_sourced; then
        _main "$@"
    fi

    while [[ 1 ]]; do
        sleep 10
    done

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: tapdata
    version: "4.8"
  name: tapdata-app
  namespace: tapdata
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tapdata-app
  strategy: {}
  template:
    metadata:
      labels:
        app: tapdata-app
    spec:
      imagePullSecrets:
        - name: huawei-swr-secret
      containers:
        - image: swr.ap-southeast-5.myhuaweicloud.com/swr-poc/tapdata_poc:v4.8.0-68d8d3a1
          name: tapdata-app
          resources:
            limits:
              cpu: "8"
              memory: "24Gi"
            requests:
              cpu: "4"
              memory: "8Gi"
          ports:
            - containerPort: 3030
              name: tm
              protocol: TCP
            - containerPort: 3080
              name: apiserver
              protocol: TCP
#          livenessProbe:
#            tcpSocket:
#              port: tm
#            initialDelaySeconds: 120
#rc            periodSeconds: 20
          readinessProbe:
            httpGet:
              path: /health
              port: tm
            initialDelaySeconds: 120
            periodSeconds: 10
          volumeMounts:
#            - name: tapdata-config
#              mountPath: /tapdata/apps/application.yml
#              subPath: application.yml
            - name: tapdata-config
              mountPath: /tapdata/docker-entrypoint.sh
              subPath: docker-entrypoint.sh
            - name: tapdata-config
              mountPath: /tapdata/apps/agent.yml
              subPath: agent.yml
            - name: tapdata-config
              mountPath: /tapdata/apps/license.txt
              subPath: license.txt

          env:
            - name: MONGODB_CONNECTION_STRING
              value: "mongodb://192.168.0.18:32000/tapdata?authSource=admin"
            # 从 Secret 中获取敏感信息
            - name: MONGODB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: tapdata-secret
                  key: mongodb-password
            - name: TAPDATA_ACCESS_CODE
              valueFrom:
                secretKeyRef:
                  name: tapdata-secret
                  key: tapdata-access-code
            - name: TAPDATA_UUID
              valueFrom:
                secretKeyRef:
                  name: tapdata-secret
                  key: tapdata-uuid
            - name: MONGODB_USER
              value: "root"
            - name: FRONTEND_WORKER_COUNT
              value: "1"
            - name: API_WORKER_COUNT
              value: "1"
            - name: JAVA_VERSION
              value: "java17"
      volumes:
        - name: tapdata-config
          configMap:
            name: tapdata-config
            items:
#              - key: application.yml
#                path: application.yml
              - key: docker-entrypoint.sh
                path: docker-entrypoint.sh
                mode: 0755
              - key: agent.yml
                path: agent.yml
              - key: license.txt
                path: license.txt

---
apiVersion: v1
kind: Service
metadata:
  name: tapdata-svc
  labels:
    app: tapdata-svc
  namespace: tapdata
spec:
  type: NodePort
  ports:
    - name: tm
      port: 3030
      protocol: TCP
      targetPort: 3030
      nodePort: 32001
    - name: apiserver
      port: 3080
      protocol: TCP
      targetPort: 3080
      nodePort: 32002
  selector:
    app: tapdata-app
